Model: G5027
Product Overview:

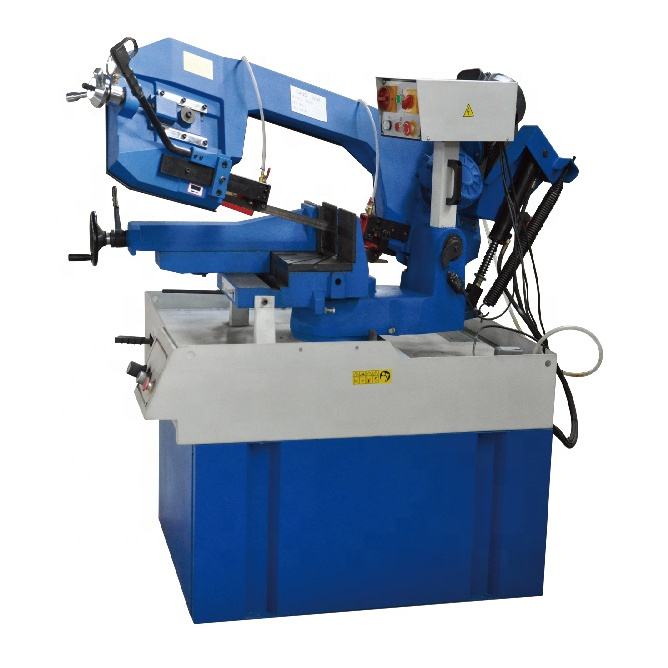

The G5027 11″ Metal Band Saw is engineered for precision and efficiency in industrial metal cutting. Its robust motor and versatile swivel bow design allow for a wide range of cutting applications, making it ideal for metalworking workshops and factories.
Technical Specifications
| Specification | Details |
| Motor(W) | 1100 / 2200 W (380V) |
| Blade Size(mm) | 2950 × 27 × 0.9 mm |
| Blade Speed(m/min) | 36 / 72 m/min |
| Bow Swivel degree | -45° to +60° |
| Working Table Height(mm) | 950 mm |
| Net Weight / Gross Weight(Kgs) | 446 kg / 551 kg |
| Packing Size (body) | 1770 × 960 × 1180 mm |
| Packing Size (Stand) | 1160 × 550 × 210 mm |
| Unit/20′ Container | 12 pcs |
Cutting Capacity
| Angle | Circular | Square / Rectangular |
| 90° | 270 mm | 260 × 260 mm, 350 × 240 mm |
| 45° | 230 mm | 210 × 210 mm, 230 × 150 mm |
| 60° | 140 mm | 140 × 140 mm |
| -45° | 200 mm | 170 × 170 mm, 200 × 140 mm |
Key Features
- Powerful motor for efficient cutting performance
- Adjustable bow swivel from -45° to +60° for angled cuts
- Capacity information for round, square and rectangular sections
- Stable and durable construction, suitable for heavy-duty use
- Two-speed blade operation for selecting a suitable cutting speed
Applications:
For metal fabrication shops, industrial manufacturing, and maintenance workshops requiring reliable and precise metal cutting solutions.
Selection and Ordering
Provide the material grade, solid or hollow section, maximum dimensions and required cutting angle. Capacity varies with angle; select the blade and feed settings for the workpiece. Confirm the 380 V supply and the supplied motor configuration before ordering.
