Overview

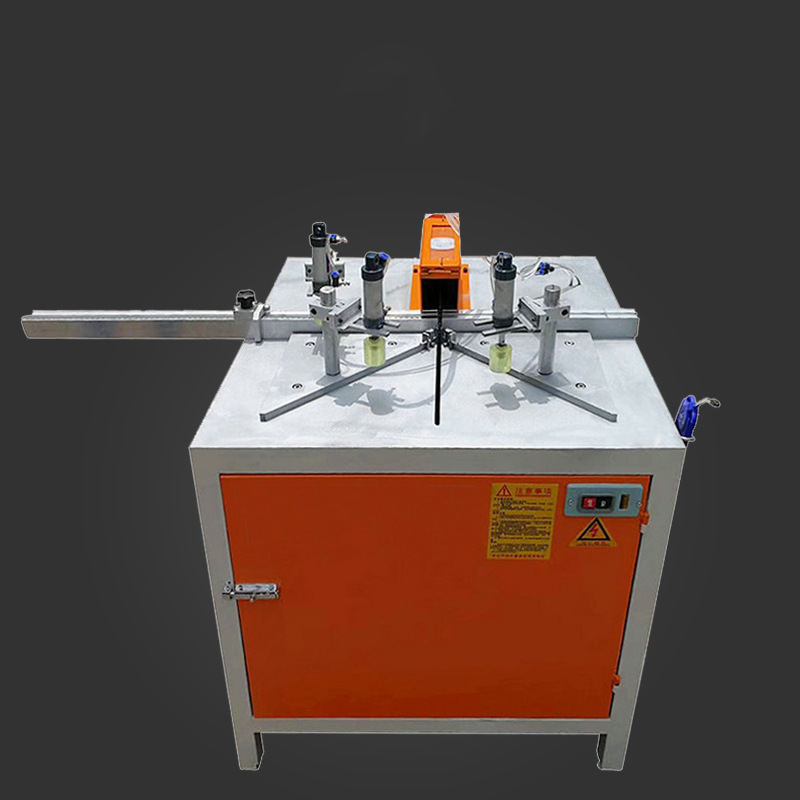

The 305 single-head angle cutting machine is a semi-automatic model with listed 45° and 90° cutting angles and a 1.5 kW motor. Its specification table lists a maximum cutting thickness of 70 mm and a cutting stroke of 100–150 mm. Compare these values with your workpiece drawing and required cut before choosing a configuration.
Technical Specifications
| Parameter | Specification |
| Maximum Cutting Stroke | 100mm – 150mm |
| Maximum Cutting Thickness | 70mm |
| Cutting Angles | 45°, 90° |
| Standard Ruler | 1 meter (left side, complimentary) |
| Motor Power | 1.5KW |
| Operation Mode | Semi-automatic |
| Working Voltage | 220V / 380V |
| Working Air Pressure | 0.4 – 0.8kpa |
| Motor Speed | 2800 r/min |
| Saw Blade Size | 305mm diameter (compatible with 10″–12″ blades) |
| Machine Weight | 165kg |
| Stretch Film Packing Size | 700 × 700 × 950mm |
| Wooden Case Size | 750 × 750 × 1050mm |
| Configuration | Standard Configuration |
| Motor Brand | Mingjun Motor |
| Electrical Switch | Zhejiang Tianhua Electric |
| Cylinder Brand | Haoyang Pneumatic |
| Motor Specification | Pure copper high-efficiency motor |
Before Ordering
Specify the material, profile dimensions, cutting angle and expected workload. The 220 V / 380 V entries represent configuration options; confirm the supplied motor and site requirements in the quotation. The published pneumatic-pressure unit needs confirmation before installation. Blade compatibility must be checked for diameter, bore, speed and material, rather than selected by diameter alone.
Request a Quotation
Amy Li · Sales Manager
WhatsApp: +86 151 5310 6820
amyli@goodstargroup.com
Phone / WeChat: +86 151 5310 6820
Send your requirements, including the model, application, quantity and delivery destination. For machinery, include your site voltage and frequency; for replacement parts, include dimensions and photos of the existing connection.
