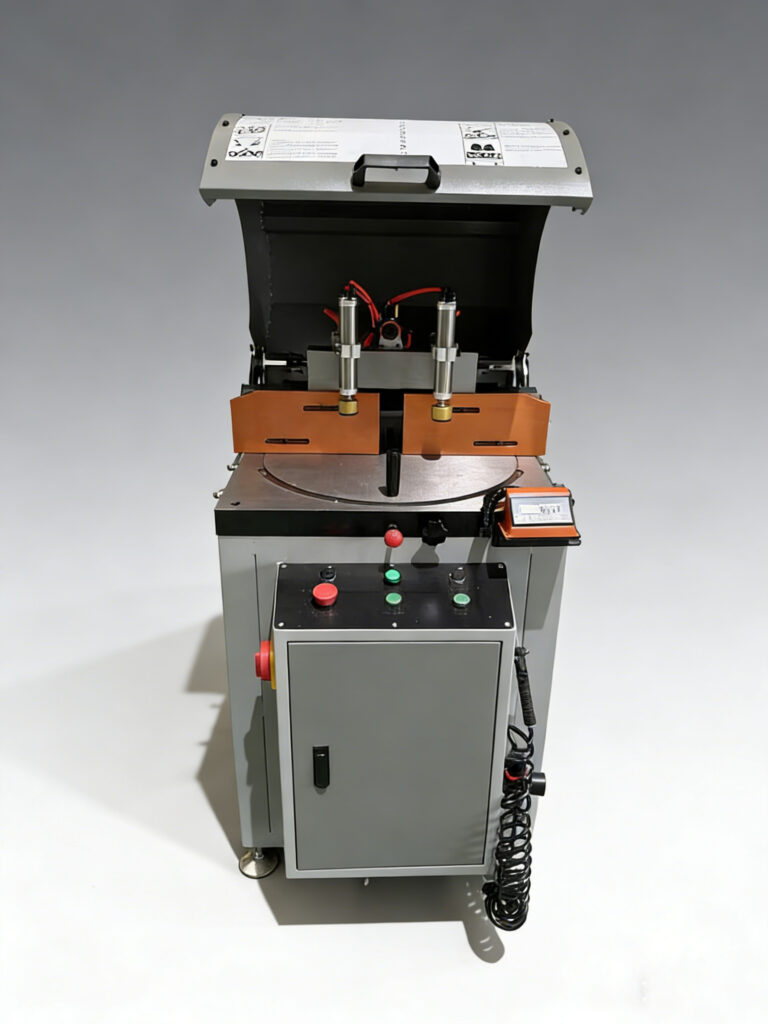

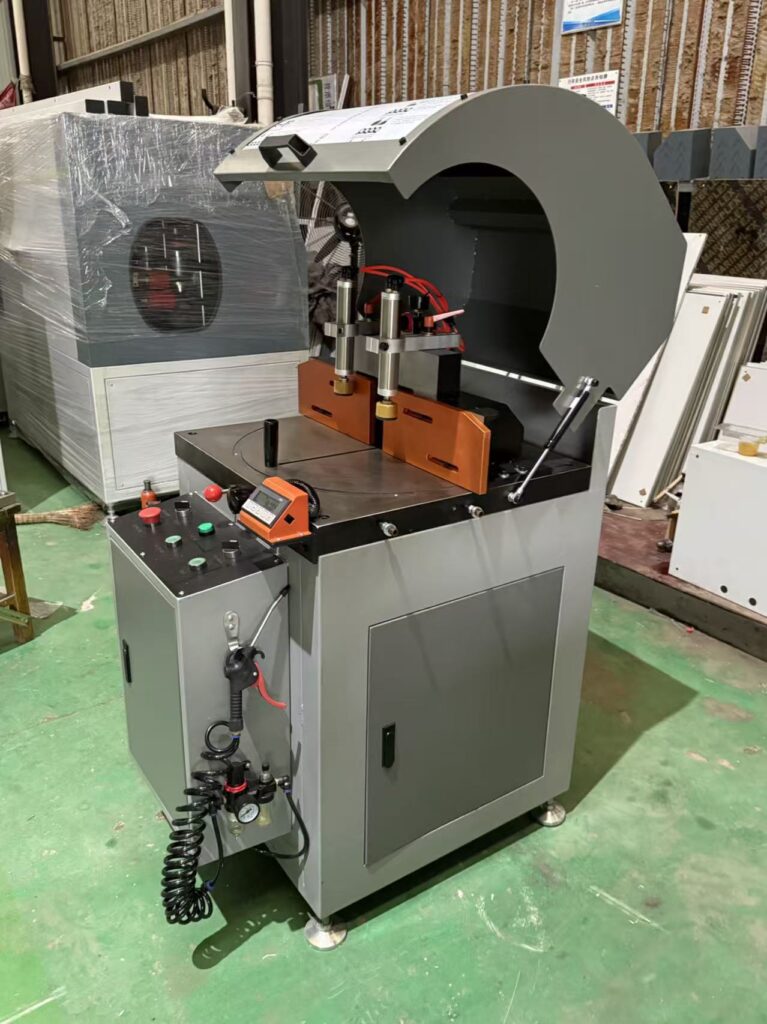

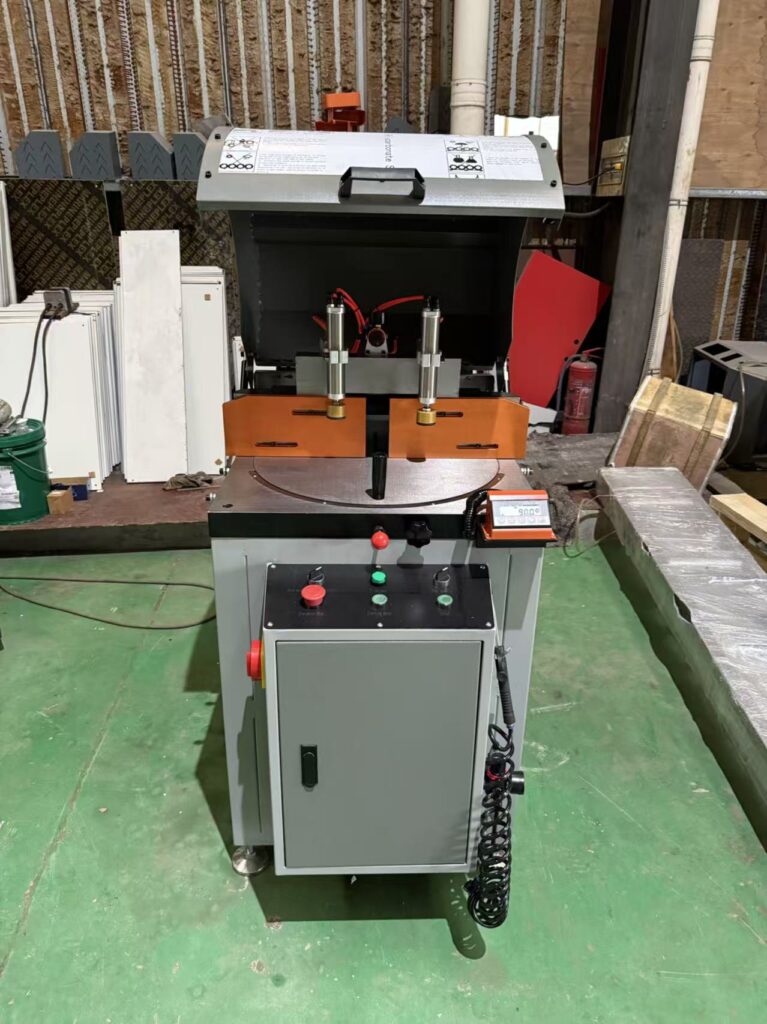

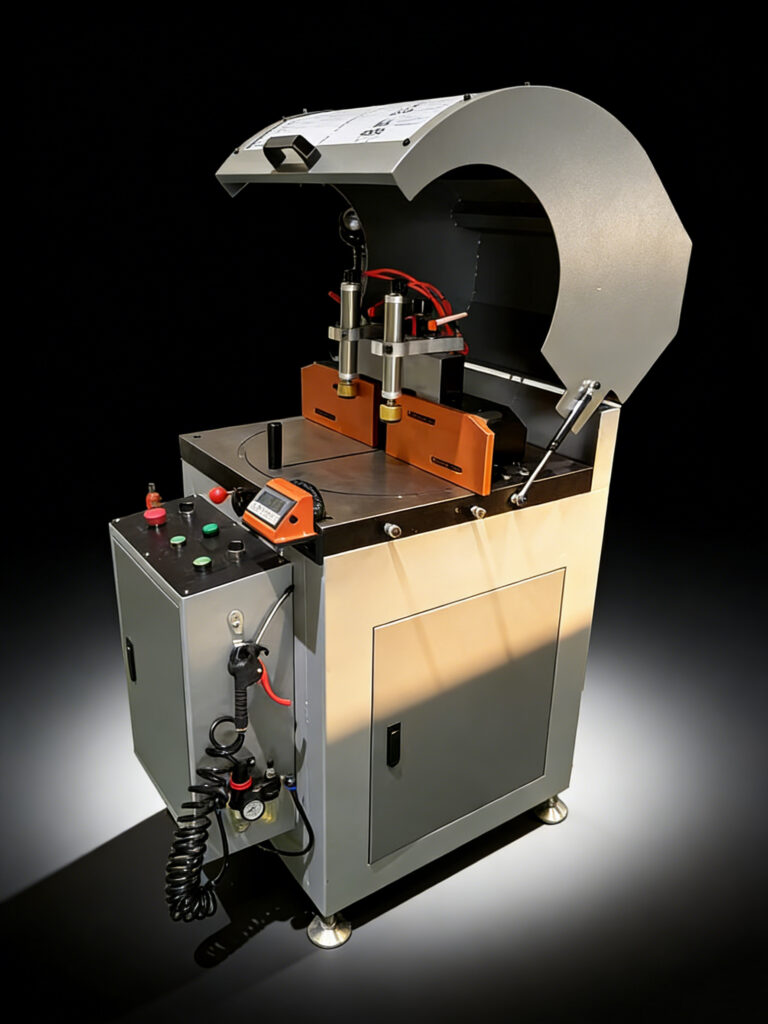

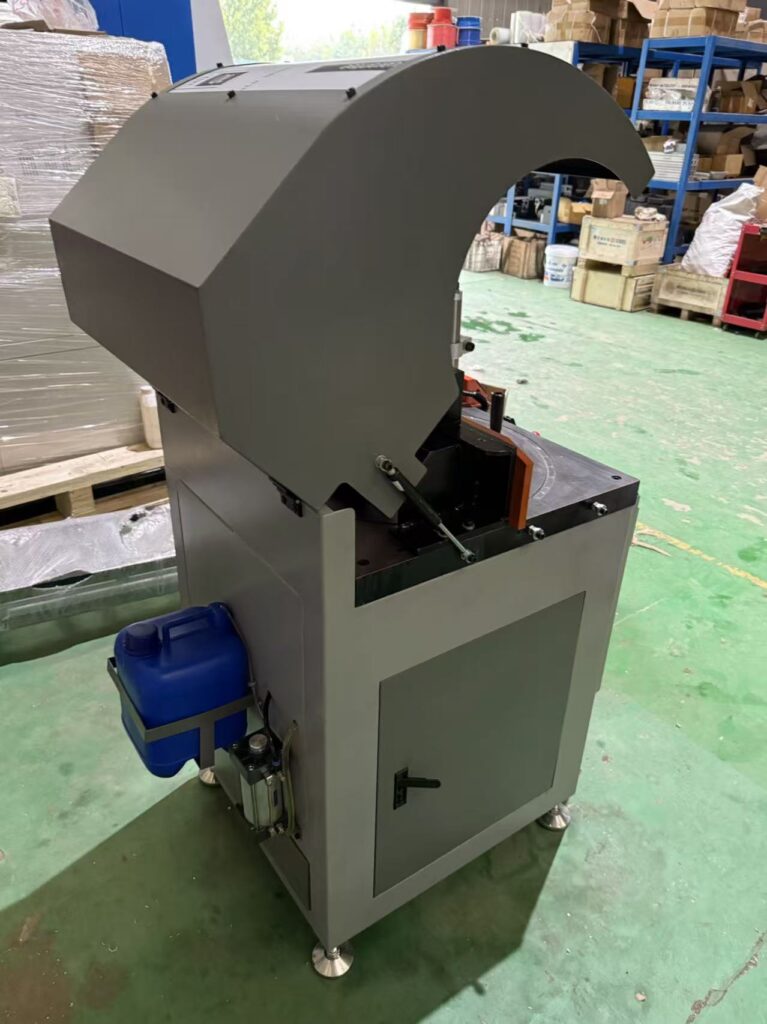

420 Arbitrary Angle Single-head Cutting Saw
Product Overview
The 420 Arbitrary Angle Single-head Cutting Saw is specially designed for high-precision cutting of aluminum profiles, non-ferrous metals, and selected plastic materials. With its compact structure and user-friendly operation, this machine is widely used in window and door manufacturing, machinery processing, and other industrial applications. It supports arbitrary angle cutting from 0° to 45°, meeting diverse production requirements.
Main Components
| Component | Brand/Origin |
|---|---|
| Button | Schneider / France |
| AC Contactor | Schneider / France |
| Relay | Delixi / Zhejiang |
| Motor | Jinsheng / Guangdong |
| Power Switch | Meanwell / Taiwan |
| Cylinder | Huatong / Shandong |
Technical Specifications
| Item | Specification |
|---|---|
| Power Supply | 380V / 50Hz |
| Total Power | 2.2 kW |
| Spindle Speed | 2800 rpm |
| Working Pressure | 0.5 – 0.6 MPa |
| Saw Blade Size | Diameter 420mm, Bore 25.4mm |
| Cutting Range (45°) | Height 110mm × Width 65mm |
| Cutting Range (90°) | Height 110mm × Width 90mm |
| Cutting Range (45°) | Height 90mm × Width 90mm |
| Cutting Range (90°) | Height 90mm × Width 120mm |
| Overall Dimensions | 600mm × 670mm × 1280mm |
| Weight | 190 kg |
Note: Multiple cutting ranges for different height and width requirements.
Product Features
- High-precision Cutting: Equipped with a high-quality blade and spindle system for smooth and accurate cuts.
- Premium Components: Key electrical parts are sourced from well-known international and domestic brands, ensuring stable operation.
- Flexible Angle Adjustment: Supports arbitrary angle cutting from 0° to 45°, meeting various processing needs.
- Safe and Reliable: Multiple safety protection devices ensure operator safety.
- Compact Structure: Small footprint for easy installation and maintenance.
Application Fields
- Aluminum window and curtain wall processing
- Machinery manufacturing
- Non-ferrous metal and plastic profile cutting
- Various profile processing plants
Standard Accessories
- One set of saw blade
- Specialized cylinder
- Complete electrical control system
- User manual and certificate
