45°/90° Double-Head Miter Saw for Aluminum Profiles

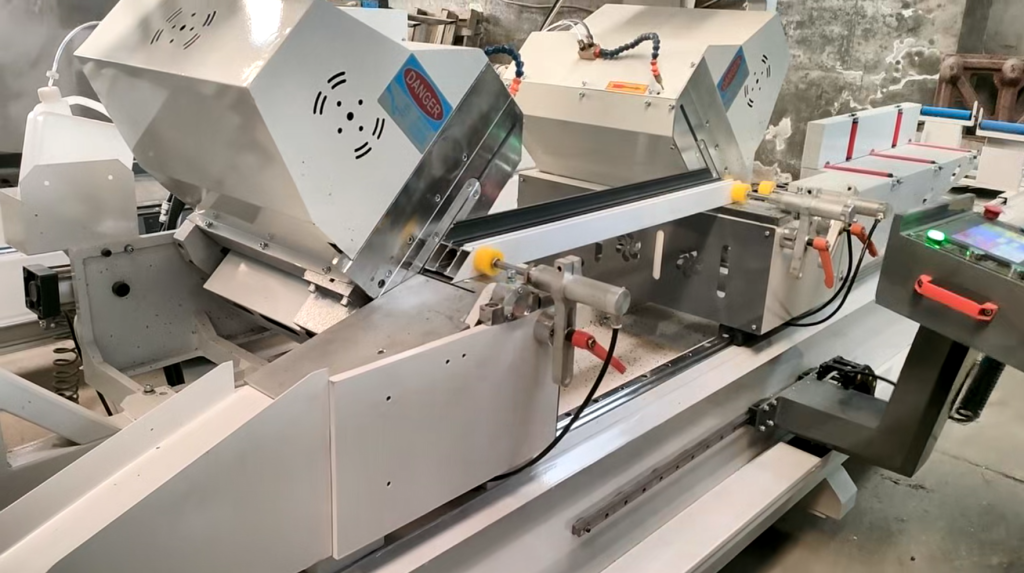

Double-head miter saw for aluminum profile cutting

Overview

This double-head miter saw is listed for 45° and 90° cutting of thermal-break aluminum profiles used in window and door fabrication. The specification includes a maximum profile width of 120 mm and two 3 kW motors. Send the full profile cross-section and required cutting length so the proposed setup can be checked against your work.

Key Advantages

  • Dual Saw Head Design: Supports synchronous/independent cutting, suitable for batch profile cutting
  • Precise Angle Control: 45°/90° cutting positions; the listed accuracy claim is ±0.05 mm, subject to confirmation of the workpiece and test conditions
  • CNC Automation: PLC control system realizes automatic positioning, feeding and cutting, reducing manual operation difficulty
  • Stable & Durable: Heavy-duty bed and high-precision guide rails ensure long-term continuous operation stability
  • Safety Protection: The listed configuration includes an emergency stop and protective cover; request the operating documentation and exact protection arrangement for the supplied machine

Technical Specification

ParameterValue
Max. Profile Width for Cutting120mm
Cutting Angle Range45°–90°
Saw Blade Diameter450mm (Optional)
Motor Power3kW × 2
Working Air Pressure0.6–0.8MPa
Overall DimensionsApprox. 4200 × 1200 × 1600mm
Net WeightApprox. 1200kg

Before Ordering

Confirm minimum and maximum cutting length, profile height, clamping arrangement and the supplied blade. The table lists a 450 mm blade as optional; it should not be assumed to be included. Provide the required voltage and frequency, available compressed-air supply and delivery destination with your enquiry.

Request a Quotation

Amy Li · Sales Manager
WhatsApp: +86 151 5310 6820
amyli@goodstargroup.com
Phone / WeChat: +86 151 5310 6820

Send your requirements, including the model, application, quantity and delivery destination. For machinery, include your site voltage and frequency; for replacement parts, include dimensions and photos of the existing connection.
