1. Composition
A cement silo (also known as a cement tank) consists of the following components: silo body (steel structure part), ladder, guardrail, feeding tube, dust collector, pressure safety valve, high and low level meter, discharge valve, and other accessories.
2. Structure

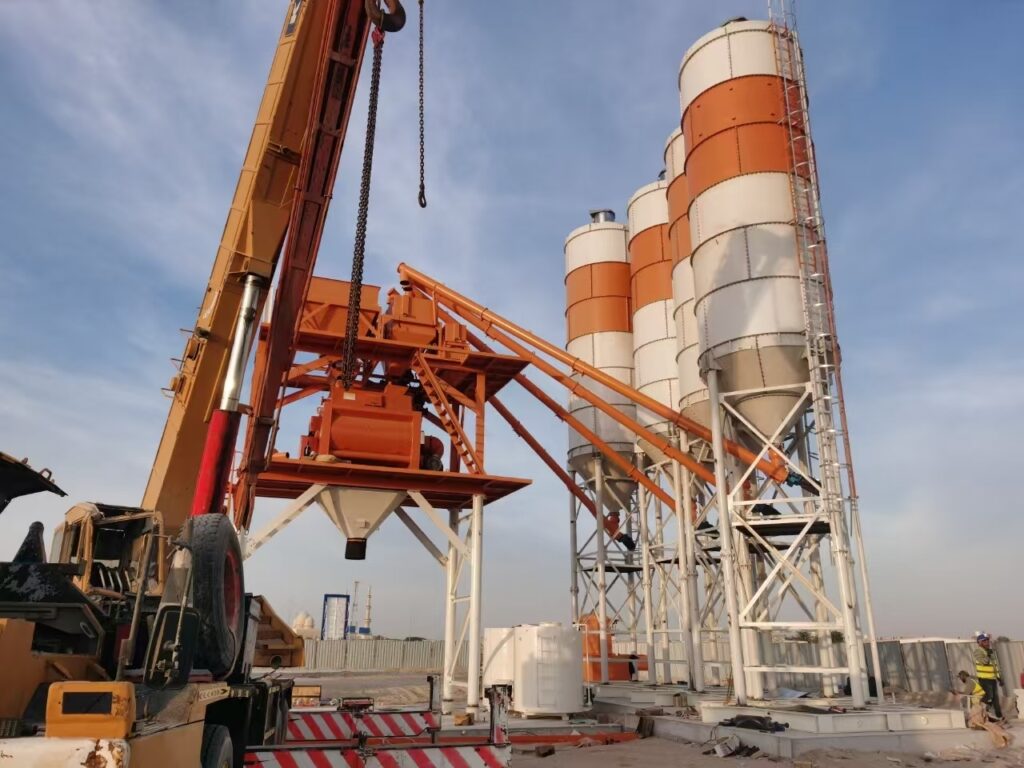

The cement silo (cement tank) features a cylindrical structure. Its bottom is supported by four round tube legs. Confirm whether a welded or bolted configuration is required; the specification table below describes bolted models. A dust collector and a pressure safety valve are installed at the top.
3. Specifications of Bolted Cement Silo
The parameters of bolted cement silos are shown in the table below:
| No. | Name & Specification | Diameter | Thickness of Plate | Legs | Weight(t) | Height of Silo Body | Total Height | Height of Legs | Container Quantity | Remarks |
| 1 | 50T | 3.16m | 5.4.3mm | 219×5.5 | 4t | 5.1m | 13.5m | 4.2m | one 40′ GP | If leg height ≤ 3m, one 20′ GP is usable |
| 2 | 100T | 3.16m | 5.4.3mm | 219×5.5 | 6t | 9.3m | 19m | 4.2m | one 40′ GP | If leg height ≤ 3m, one 20′ GP is usable |
| 3 | 150T | 3.6m | 6.5.4mm | 219×9 | 10t | 10.7m | 21m | 4.2m | one 40′ GP | – |
| 4 | 200T | 4.5m | 6.5.5mm | 273×7 | 13t | 9.3m | 19m | 4.2m | one 40′ HQ | – |
| 5 | 250T | 4.5m | 6.5.5mm | 273×9 | 15t | 10.7m | 21m | 4.2m | one 40′ HQ | – |
| 6 | 300T | 5m | 8.6.5mm | 325×9 | 19t | 10.7m | 21m | 4.2m | one 40′ HQ | – |
| 7 | 350T | 5m | 8.6.5mm | 325×10 | 22t | 11.7m | 22m | 4.2m | one 40′ HQ | – |
| 8 | 400T | 5.5m | 8.6.5mm | 426×10 | 24t | 12m | 23m | 4.2m | two 40′ HQ | – |
| 9 | 500T | 6m | 8.6.5mm | 426×12 | 26t | 12m | 23m | 4.2m | two 40′ HQ | – |
Selection and Ordering
Provide the storage material, required capacity, discharge height, installation location and delivery port. Confirm the silo configuration, accessories, site design requirements and final shipping plan in the quotation. The table covers 50T–500T models; dimensions and packing must be checked against the approved model drawing.
