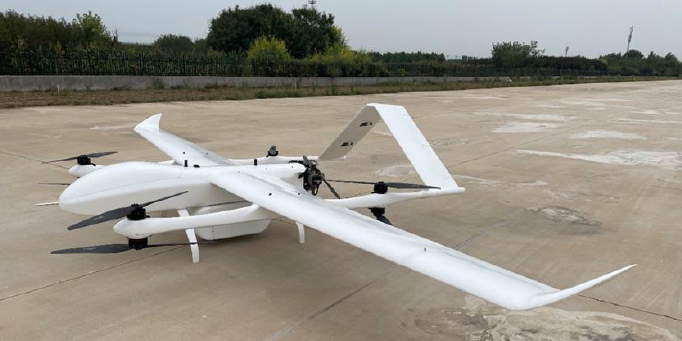

Cha da Type UAV — CYQJ-30
1. Product Overview
The CYQJ-30 Basic Type is an export-oriented UAV (Unmanned Aerial Vehicle) integrated with tactical reconnaissance and strike capabilities. As a heavy-payload, long-endurance, vertical take-off and landing (VTOL) compound UAV system, it features advanced payload integration and reliable operation performance, suitable for multiple critical mission scenarios.
2. R&D Progress & Production Plan
- R&D Initiation: The development of the CYQJ-30 system started in July 2020.
- Key Milestone: In April 2021, the UAV achieved an altitude breakthrough of 6,000 meters for the first time.
- Current Stage: The system is now in the finalization phase, undergoing reliability flight verification and environmental adaptability tests.
- Prototype Status: The preliminary experimental prototype is conducting flight verification at the designated target range. A contract for the project has been signed.
- Production Plan: Large-scale production will be launched upon the completion of finalization.
3. UAV Platform Specifications
| Parameter | Specification |
| Layout Mode | Compound wing layout (combining fixed wing and rotor) |
| Fuselage Length | 3.0 meters |
| Wingspan | 6.97 meters |
| Maximum Take-off Weight | 175 kg |
| Cruise Speed | 120 km/h |
| Flight Endurance | 5.0 hours |
| Maximum Payload Capacity | 50 kg |
| Wind Resistance Level | Level 6 |
| Take-off & Landing Mode | Vertical Take-off and Landing (VTOL) |
| Service Ceiling | ≤ 6,500 meters |
| Special Design | Large internal mission cabin (facilitating payload integration) |
4. Payload Integration Capabilities
The CYQJ-30 Compound UAV System supports integration of multiple types of payloads, including:
- Electro-optical pod
- Rapid 3D modeling payload
- Personnel search and rescue payload
- Airborne public network base station
- Airborne PDT (Passive Distributed Terrestrial Network) cluster base station
- Airborne broadband ad-hoc network equipment
- Airborne satellite communication device
- Dual explosive reactive armor-piercing warhead
- Seeker
5. Navigation, Control & Launch
5.1 Navigation System
- Adopts a Beidou (BDS) and Global Positioning System (GPS) integrated autonomous navigation system.
5.2 Control System
- Equipped with a dual-mode seeker, consisting of a television camera and an uncooled infrared sensor.
- Before the seeker locks onto the target: The UAV/missile relies on inertial navigation (integrated with supporting equipment and communication systems) for flight control.
- During the mission (before reaching the target): The operator can adjust the flight direction of the missile at any time via the real-time data link.
5.3 Launch Mode
- Catapult launch.
5.4 Data Transmission
- Utilizes satellite communication and air-to-air relay systems for telemetry data transmission, ensuring stable and real-time data exchange.
6. Operational Applications
The CYQJ-30 UAV System can perform the following tasks and is deployed in corresponding fields:
- Core Tasks: Emergency command communication, real-time disaster reconnaissance, rapid 3D modeling, personnel search and positioning, tactical reconnaissance, and strike operations.
- Deployment Fields: Emergency communication support, surveillance and monitoring, disaster relief operations, and tactical mission execution.
