Product Overview:

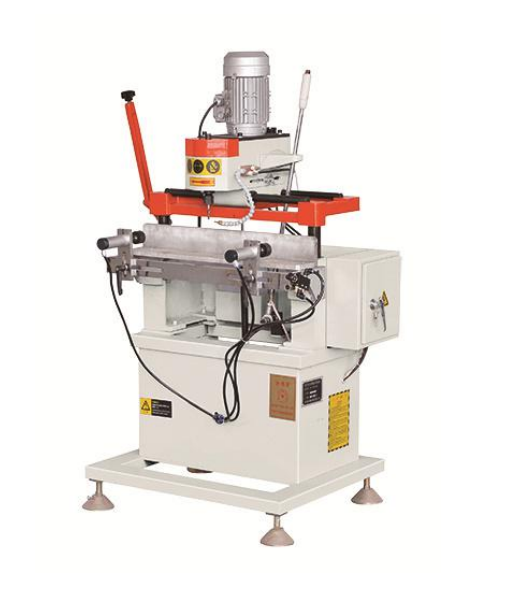

The DX-2 is a specialized single-head copy milling machine designed for processing a variety of hole grooves in aluminum and plastic profiles, including drain grooves, pulley grooves, keyholes, and hardware mounting holes. By replacing different contour plates, the machine can efficiently mill holes of various shapes to meet diverse fabrication requirements. Featuring high-speed cutting, pneumatic clamping, and reliable performance, the DX-2 is an excellent choice for door and window manufacturers seeking productivity and flexibility.
Key Features:
- Suitable for milling drain grooves, pulley grooves, keyholes, and hardware holes in aluminum and plastic profiles
- Replaceable contour plates for processing different hole shapes
- High-speed cutting with spindle speed up to 12,000 rpm
- Pneumatic clamping for secure workpiece fixation and increased efficiency
- Stable and reliable operation for consistent results
Technical Specifications
| Item | Specification |
| Model | DX-2 |
| Voltage | 380V / 50Hz |
| Air Pressure | 0.5–0.8 MPA |
| Power Rating | 0.75 kW |
| Milling Cutter Diameter | Φ5 mm, Φ8 mm |
| Spindle Speed | 12,000 r/min |
| Copy-Routing Range | 290 × 90 mm |
| Overall Dimensions | 870 × 700 × 1500 mm |
Applications:
Ideal for aluminum and plastic door and window manufacturers requiring flexible, high-precision milling for various types of profile holes and grooves.
