Product Overview:

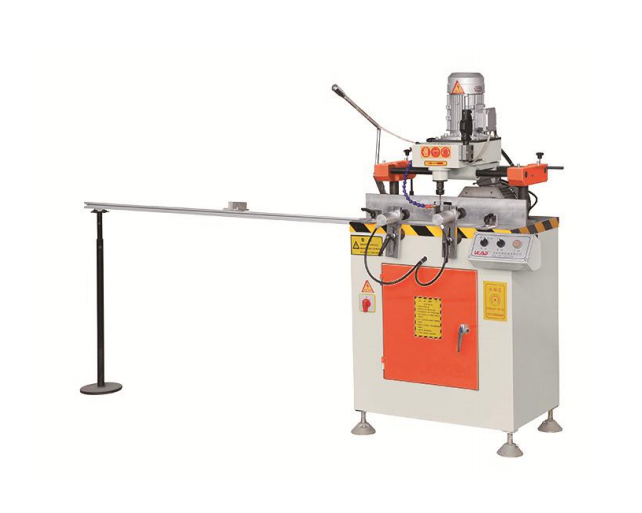

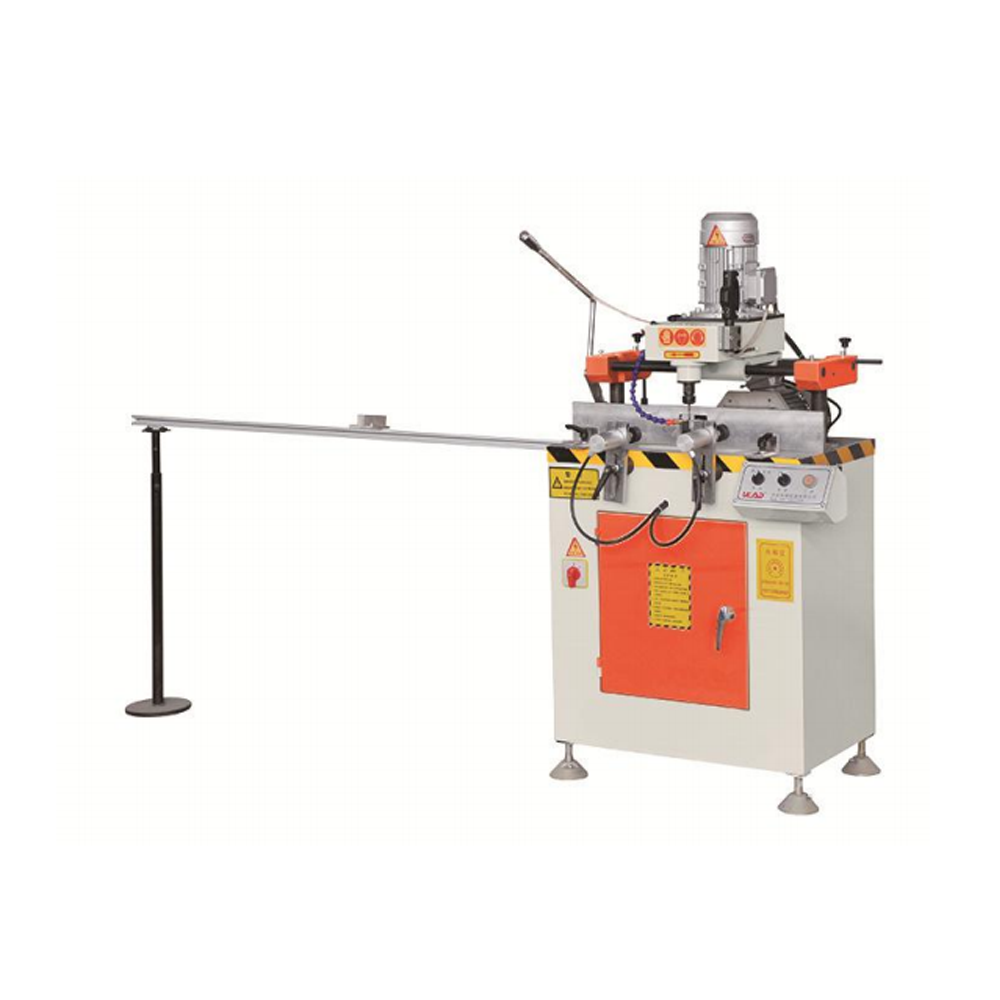

The HDX-1 is a heavy-duty, single-axis copy milling machine designed for high-efficiency processing of aluminum doors, windows, and curtain wall profiles. It is suitable for cutting various types of holes, slots, and nozzles with continuous and precise operation. Featuring a robust structure, advanced safety controls, and easy mold adjustment, the HDX-1 is ideal for manufacturers demanding high productivity and reliability.
Key Features
- Capable of processing a wide range of holes, slots, and nozzles for aluminum doors, windows, and curtain walls
- Compact and aesthetically pleasing machine design
- Pneumatic control for both profile clamping and motor activation, for the listed clamping and activation functions
- Quick and easy mold adjustment and replacement
- High-power variable frequency electric spindle allows for continuous processing and high production efficiency
- Request the operating documentation for the supplied configuration
Technical Specifications
| Item | Specification |
| Model | HDX-1 |
| Voltage | 380V / 50Hz |
| Air Pressure | 0.5–0.8 MPa |
| Power Rating | 1.1 kW |
| Milling Cutter Diameter | Φ5 mm, Φ8 mm |
| Spindle Speed | 18,000 r/min |
| Copy-Routing Range | 350 × 160 mm |
| Overall Dimensions | 900 × 800 × 1700 mm |
Applications:
Ideal for manufacturers of aluminum doors, windows, and curtain walls requiring high-efficiency, high-precision milling for various profile features.
Selection and Ordering
Send the profile and finished-feature drawings. Compare the 350 × 160 mm copy-routing range with your operation, then confirm cutters, templates and clamping arrangements. The listed utilities are 380 V / 50 Hz and 0.5–0.8 MPa compressed air. Confirm the supplied configuration against your workshop requirements.
