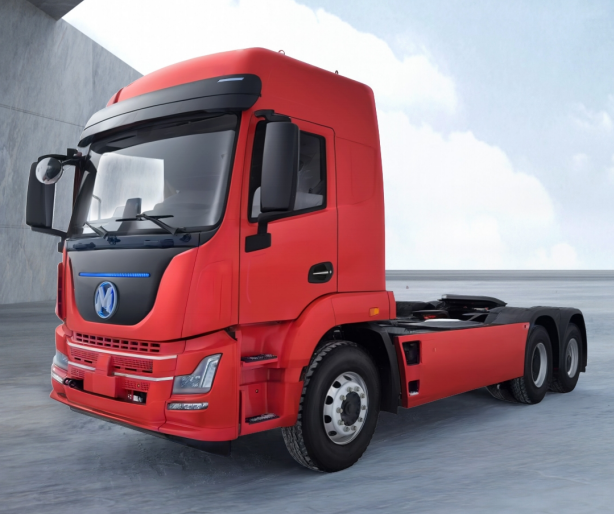

Mengbate 6×4 Tractor Truck
Model: HQG4251EVMBT
1. Product Overview
The Mengbate 6×4 Tractor Truck is an electric-powered heavy-duty vehicle designed for high efficiency, safety, and flexibility. It integrates advanced technologies such as distributed drive systems and CATL lithium iron phosphate (LFP) batteries, making it suitable for scenarios like port logistics and long-haul transportation, while addressing core needs like load capacity, stability, and energy efficiency.
2. Technical Parameters
| Item | Parameters |
| External Size | 7250(L) × 2550(W) × 3500(H) mm |
| Wheel Base | 3500 + 1350 mm |
| Curb Weight | 11440 / 10500 kg |
| Max Speed | 120 km/h |
| Drive System Model | CDTL TZ260XS-80-09 |
| Max Power (Drive System) | 720 (2×360) kW |
| Max Torque (Drive System) | 100000 (2×50000) N.m |
| Power Type | Electricity |
| Battery Model | CATL LFP |
| Battery Capacity | 341.8 kWh |
| Steering Gear | Left-hand drive steering gear |
| Front Axle | 7T front axle |
| Rear Axle | CDTL 13T distributed drive axle |
| Tire Specification | 295/80R22.5 |
| Cab Configuration | Cab with AC; Main airbag + auxiliary simple seat |
| Bumper | Low-position bumper (non-metallic) |
| Saddle | 90# King Kong saddle |
| ABS Control System | IEBS + IESS + EASR |
| Other Features | Integrated electric lifting (manual + electric); Split-type fender |
3. Technical Highlights
3.1 Bottom Battery Layout: Space-Saving & Anti-Rollover
Compared with traditional “rear-mounted battery” designs, the Mengbate tractor adopts a chassis-mounted battery layout with significant advantages:
- Space Efficiency: Traditional rear-mounted batteries occupy 850mm of cargo compartment space (reducing cargo volume by 9% for 8×4 box trucks, equivalent to 5.5 m³ less load). The bottom layout avoids cargo space occupation and supports high battery capacity needs.
- Safety Enhancement: Lowers the vehicle’s center of gravity, greatly improving anti-rollover performance and overall driving safety (traditional designs have higher centers of gravity and poor stability).
3.2 Distributed Drive System: Weight Reduction & Efficiency Boost
The distributed drive system outperforms conventional direct-drive systems in key metrics:
- Efficiency: Increases drive efficiency by 14% (total efficiency reaches 94%).
- Weight Reduction: Cuts system weight by 23.6%, achieving a net weight reduction of 587kg (traditional direct-drive system: 1900kg; distributed system: ~1313kg).
- Energy Saving: Reduces overall energy consumption due to optimized drive logic.
3.3 High Reliability & Safety
The distributed drive system inherently incorporates advanced safety strategies, surpassing conventional direct-drive systems:
| Safety Feature | Distributed Drive System | Conventional Direct-Drive System |
| Traction Control (ASR) | Equipped with electric ASR; supports electronic differential lock for better passability on slippery/soft roads | No ASR function |
| Vehicle Stability Control (ESC) | Integrated ESC to improve cornering safety and passability on rainy/wet roads | No ESC function |
| Drive Redundancy | Independent drive for front/rear axles and left/right wheels; other components work normally if one fails | Single motor; total vehicle breakdown if motor fails |
| Brake-Drive Decoupling | Four-motor strong energy recovery; drive system acts as retarder to prevent brake overheating/thermal fade | No decoupling; no retarder function |
3.4 Safe, Efficient & Intelligent Battery Technology
Adopts CATL’s 3rd-generation swapable LFP battery modules, with industry-leading performance:
- Safety:
- Meets ASIL D safety requirements (industry average: ASIL B).
- Aerospace-grade thermal insulation and fire prevention design; “no-fire, no-leakage” performance (surpasses industry standards).
- Prevents thermal spread between battery modules.
- Capacity & Flexibility:
- Single battery module: 171 kWh; full set (3 modules): 513 kWh.
- Users can select battery capacity based on transportation scenarios.
- Performance:
- Temperature Adaptability: Operates in -35°C ~ 65°C (covers plateau, alpine, and high-temperature environments); 10% longer low-temperature range (-20°C) compared to industry averages.
- Charging & Swapping: 1 hour to charge from 20% to 100%; 5-minute battery swap (swap success rate >99%); supports 300A single-gun charging (-5°C startup, 15% faster charging from 20% to 100% at -20°C).
- Durability:
- Cycle life: 6000 charge-discharge cycles (3x that of previous generations; industry average: 2500 cycles).
- Energy density: 165 Wh/kg (3x higher than previous generations); battery + bracket weight reduced by 300kg (vs. 400kWh industry-standard batteries).
- Vibration resistance: Up to 3.74 g²/Hz (supports 500,000 km operation in mining areas; industry average: 1.44 g²/Hz for 100,000 km).
4. Warranty & Monitoring
- Provides transparent warranty for battery life.
- Real-time battery health monitoring to keep users informed of the system status.
