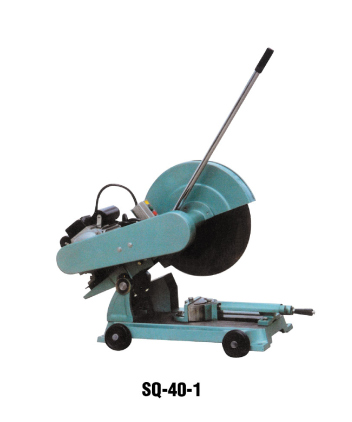

SQ-40-1 Abrasive Cutting Machine
Key Features
- Equipped with an anti-burr device for cleaner cuts
- 24V low voltage system with “hold-to-run” hand control knob
- High-efficiency abrasive cutting tool
Specifications
| Item No. | 377003 |
|---|---|
| Model | SQ-40-1 |
| Rotation Speed | 2242 rpm |
| Cutting Wheel | 405 x 3 x 25.4 (32) mm |
| Motor Power | 2.2 kW |
| Max. Cutting Capacity | Ø40 mm |
| Packing Size | 90 x 52 x 70 cm |
| Net/Gross Weight | 90/100 kg |
The SQ-40-1 abrasive cutting machine uses a 2.2 kW motor and a 405 mm cutting wheel. Its listed features include an anti-burr device and a 24 V hold-to-run control. Use the table below to check dimensions and packing information when planning a workshop installation.
Selection and Ordering
Send the material grade, section size and production requirement. Confirm the wheel specification and bore size, power supply and included accessories in the quotation. The listed maximum capacity is Ø40 mm; suitability depends on the workpiece and selected wheel.
