Product Overview:

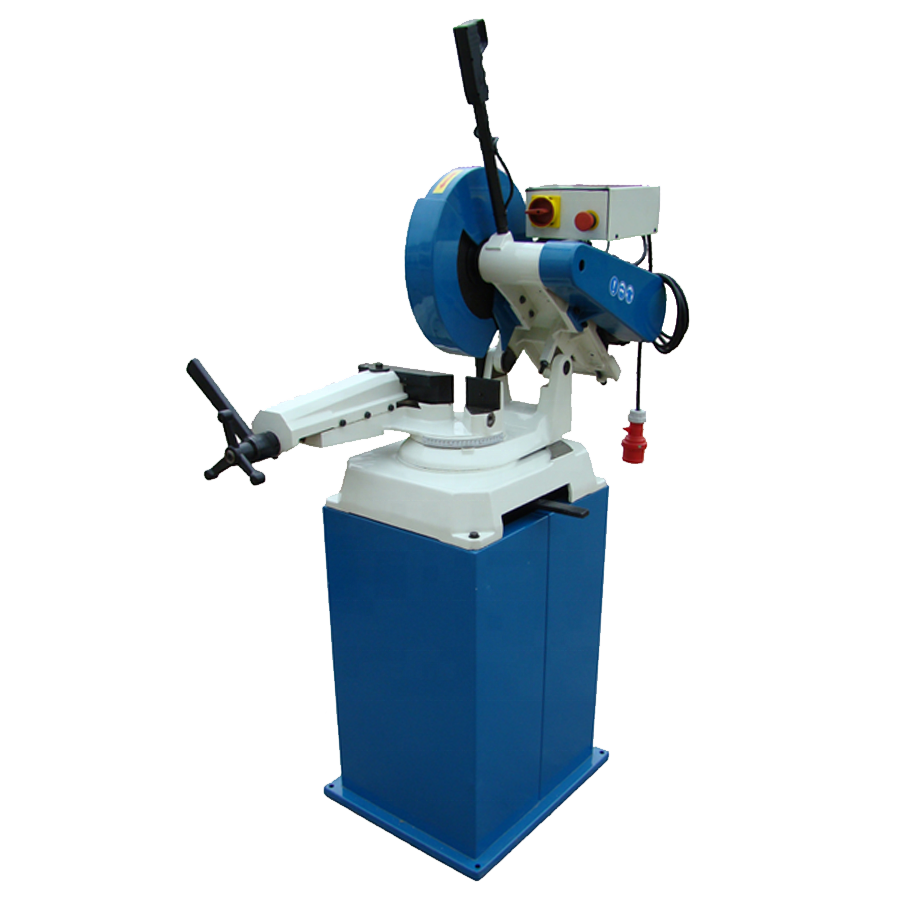

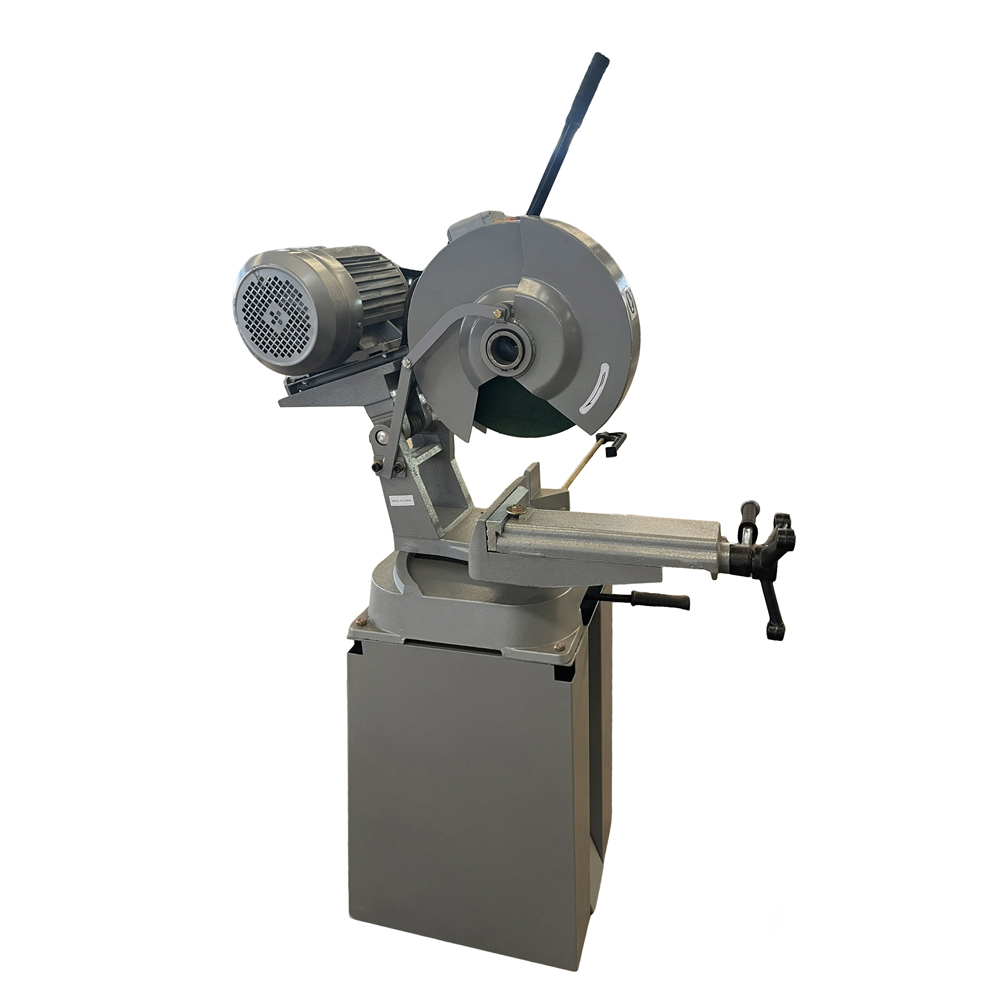

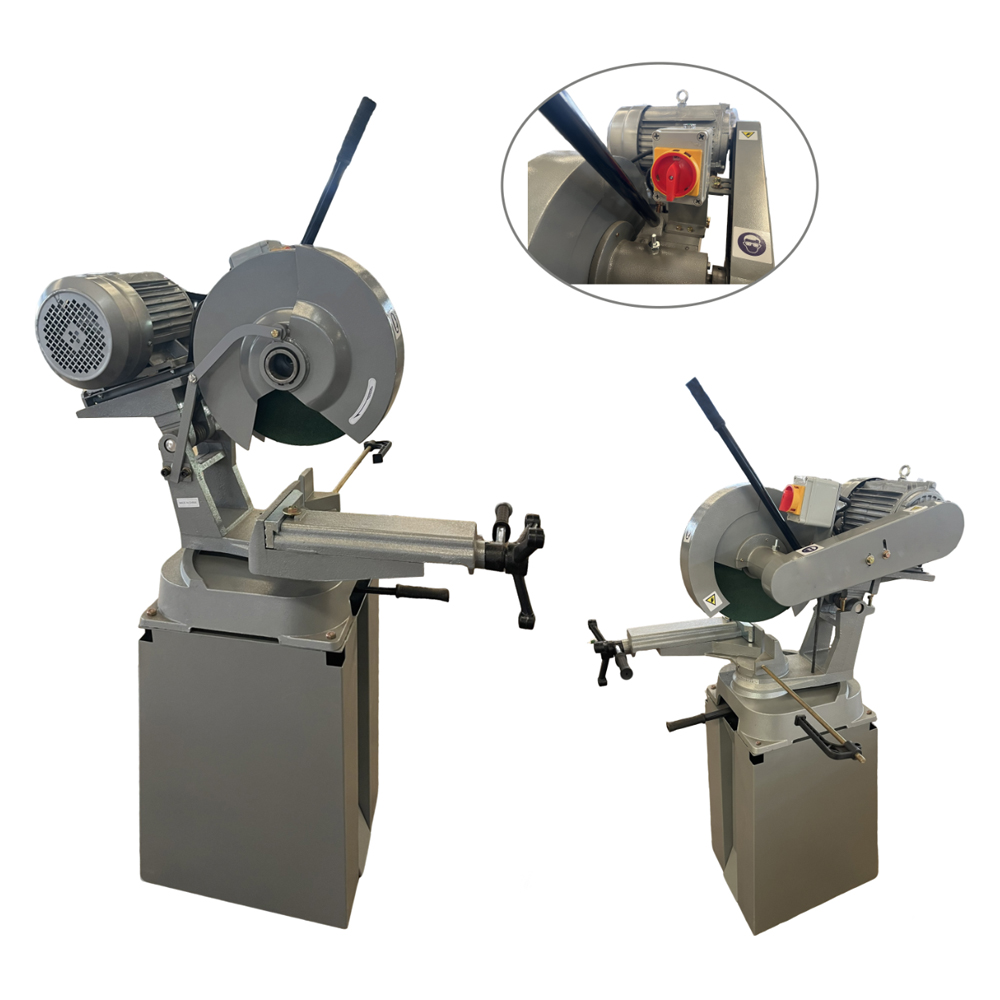

The TV Series features two models, TV-300 (Item No. 389023) and TV-350 (Item No. 389024), designed for precision cutting of various materials. Both models offer robust performance, high blade speeds, and reliable belt drive systems, making them ideal for industrial and workshop applications.
Key Dimensions & Cutting Capacity
| Item No. | 389023 | 389024 |
| Model | TV-300 | TV-350 |
| Max Blade Size | 300 mm | 350 mm |
| Cutting Capacity | ||
| Circular @ 90° | 100 mm (4″) | 120 mm (4.7″) |
| Rectangular @ 90° | 80 × 140 mm (3.1″ × 5.5″) | 140 × 90 mm (5.5″ × 3.5″) |
| Circular @ 45° | 90 mm (3.5″) | 105 mm (4.1″) |
| Rectangular @ 45° | 70 × 100 mm (2.8″ × 3.9″) | 90 × 100 mm (3.5″ × 3.9″) |
| Vice Opening | 190 mm (7.5″) | 190 mm (7.5″) |
Operational Parameters
| Specification | TV-300 | TV-350 |
| Blade Speed (@50Hz) | 5400 rpm | 4300 rpm |
| Drive Type | Belt drive | Belt drive |
Power & Motor
| Specification | TV-300 | TV-350 |
| Motor Power | 4 kW (50/60Hz) | 5.5 kW (50/60Hz) |
Packaging & Weight
| Specification | TV-300 | TV-350 |
| Packing Size | 98 × 62 × 90 cm | 98 × 62 × 95 cm |
| (Stand Version) | 77 × 57 × 47 cm | 77 × 57 × 47 cm |
| Net Weight (N.W.) | 105 kg | 135 kg |
| Gross Weight (G.W.) | 119 kg | 145 kg |
Key Features
- Precision cutting for both circular and rectangular materials at various angles
- High-speed blade operation
- Powerful motor suitable for heavy-duty usage
- Large vice opening for versatile material handling
- Durable belt drive system
Applications:
Ideal for metalworking shops, fabrication workshops, and industrial manufacturing environments requiring accurate and efficient cutting solutions.
Selection and Ordering
Choose the model using the workpiece section and required angle, not blade diameter alone. Provide the material grade, section drawing, supply voltage and frequency. The listed blade speeds apply at 50 Hz; confirm the supplied configuration for a 60 Hz installation and the correct blade for the material.
